50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure

Model Number : HZ-4X100C5

Place of Origin : China

Brand Name : nenglv

Packaging Details : 1 pcs in one carton
the gross weight is about 30Kg

Supply Ability : 100 Piece/Pieces per Week

Price : $500.00/pieces >=1 pieces

Type : EMI Filter

Transfer Function : Low Pass

Nominal Center Frequency : 50/60Hz

3dB Bandwidth : 14K

Insertion Loss : 100dB

Input Impedance : 50ohm

Stopband Attenuation : 100dB

Rated Voltage : 380VAC

Rated Current : 100A

Operating Frequency : 50/60Hz

Application : rf shielding room

Port : shanghai

Certification : ce

Contact Now

Product Description
RATED VOLTAGE
380 VAC
RATED CURRENT
 100 A
Voltage Drop
Less than 1V
Overload
140% of rated current for 15 minutes
Harmonic Distortion
Less than 2% @ full rated current
Leakage Current
≤0.2A@380/230VAC and 50Hz
Dielectric Withstanding Voltage
1000VDC (line to line) 1000VDC (line to case)
DC Insulation Resistance
 As Per MIL-STD-202 Method 202
Terminal Strength
As Per MIL-STD-202 Method 211
Temperature Rise
 As Per MIL-F-15733
Insertion Loss
≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
Climatic Classification
25/070/21
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure

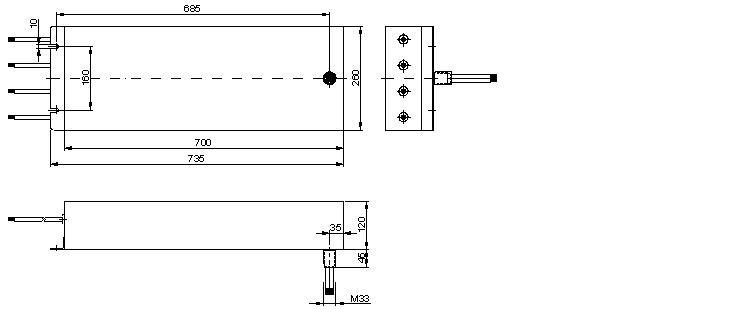

DIMENSION
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure




50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure

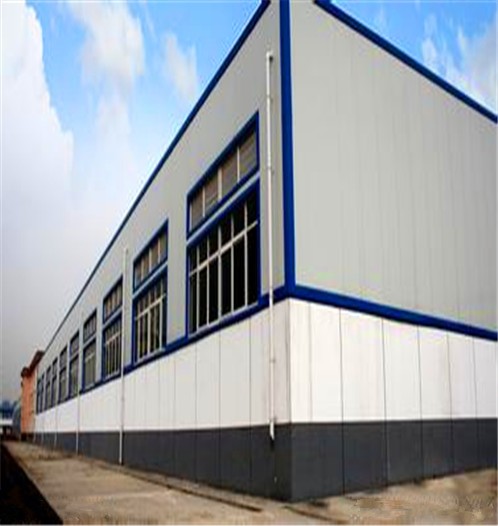

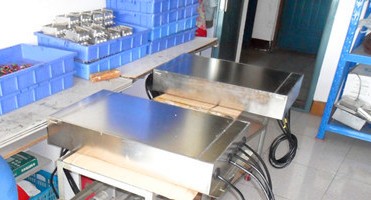

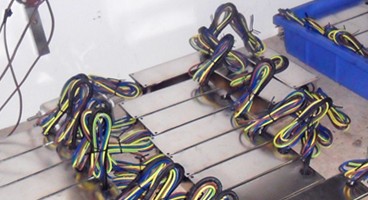

Our Company

We are a professional and famous EMI filter manufacturer.
Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.


50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
Certifications
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
Packing & Delivery
CARTON AND WOODEN CASE

50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure
